How Web Guiding Systems Work in Roll-to-Roll Lines

The control loop

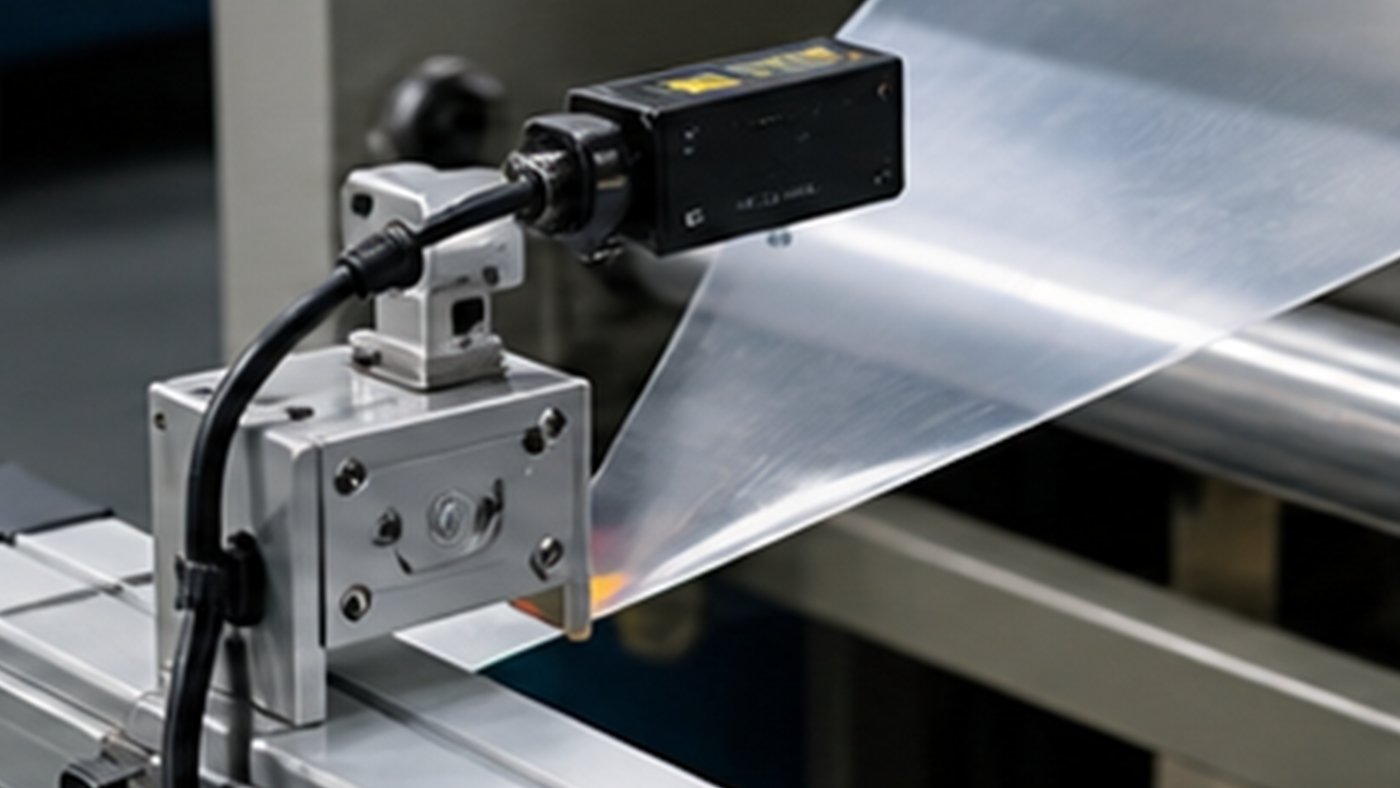

A sensor reads the edge, center, printed line, or contrast mark. The controller compares that position with the target, then commands an actuator to shift the guide mechanism. This creates a real-time correction loop that helps prevent wrinkles, edge waste, and misregistration.

Typical system components

• Web guide controller for processing and control logic.
• Photoelectric, ultrasonic, or camera mark sensor for position feedback.
• Linear actuator, guide frame, or integrated EPC unit for correction.
• Operator interface for sensitivity, mode, and calibration settings.

How to choose a web guiding system

The best web guiding package depends on the material and the process that needs alignment. Clear film and low-contrast webs often need ultrasonic sensing, while printed materials may use photoelectric sensors or line-guide modes. If machine space is limited, an integrated EPC unit can reduce installation work by combining the actuator, frame and control package into a compact assembly.

For a practical recommendation, define the web width, material type, line speed, correction position, guiding mode and available mounting space. These details help decide whether the line needs a standalone EPC controller, a sensor upgrade, a web guide actuator or a complete integrated web guiding system.

Related KRD products

KRD supplies standalone controllers, sensors, actuators, and integrated web guiding systems.

FAQ

Engineering considerations for production lines

A web guiding system should be viewed as a position-control loop. The sensor detects edge, line or center position; the controller compares that signal with the target; the actuator moves the guide frame or roller assembly to correct lateral error.

In real production, the best guide location is usually before the process that needs accuracy, not after the defect is already created. For printing, coating and slitting machines, sensor location, roller wrap angle and actuator stiffness can matter as much as controller settings.

How KRD Automation supports selection

KRD Automation reviews the complete machine context before recommending components. Important details include web width, material type, line speed, control zone, available installation space, required correction accuracy and whether the project is a new OEM build or a retrofit. This approach helps avoid over-specifying one part while missing the practical limit in another part of the control loop.

For a customized recommendation, share drawings, photos or short videos of the machine section. KRD can help compare tension controllers, load cells, EPC controllers, ultrasonic or photoelectric sensors, linear actuators and integrated web guiding units for the application.

Practical data to collect before choosing equipment

For any roll-to-roll control project, the best recommendation starts with process data. Useful information includes web width, material thickness, substrate type, line speed, roll diameter, control zone, required accuracy and the machine section where the problem appears. Photos of the web path, sensor mounting area and actuator location are often more useful than a model number alone because they show the real mechanical constraints.

It is also important to describe the defect in production language. Examples include edge wander, wrinkles after acceleration, unstable unwind tension, poor rewind hardness, hunting guide movement, sensor loss on transparent film, inconsistent slitting edge or registration drift. These symptoms help identify whether the issue is mainly sensing, control logic, actuator sizing, mechanical alignment or tension stability.

Common specification mistakes

One common mistake is selecting a controller without confirming the feedback method. Another is choosing a sensor based only on catalogue type instead of testing the actual material. A third is undersizing the actuator or brake because the machine speed, roll inertia or guide load was not considered. In industrial environments, stable performance usually comes from matching the full loop: sensor, controller, actuator, mechanics and operator interface.

For North American OEM and converter projects, serviceability also matters. Wiring should be clear, calibration should be repeatable and operators should be able to understand alarm conditions quickly. A solution that is easy to install and maintain often creates more value than a more complex system that is difficult to support on the production floor.

When to contact KRD Automation

Contact KRD when a machine requires a new tension controller, web guide controller, sensor, actuator or integrated EPC unit, or when an existing line is producing waste that appears related to web tension or lateral alignment. KRD can review the application and suggest a practical product family for printing, packaging, film, foil, label, nonwoven or lithium battery material production.

Implementation checklist for engineers and maintenance teams

Before purchasing equipment, document the current machine condition and the expected improvement. Record where the web becomes unstable, whether the issue appears during startup or steady operation, and whether the problem changes with material, roll diameter or speed. This information helps separate a control issue from a mechanical alignment issue.

Next, confirm the installation constraints. Check the available panel space, sensor mounting distance, roller layout, actuator mounting position, cable routing and whether the machine already has PLC input or output requirements. Many successful retrofit projects depend on these mechanical and electrical details being reviewed before the product is ordered.

Finally, define how success will be measured. Examples include lower startup scrap, reduced edge trim, more consistent rewind quality, fewer web breaks, faster changeover or improved registration stability. When the success metric is clear, it is easier to choose the right level of control instead of overbuilding or underbuilding the system.
