PG-300A / PG-350A / PG-400A~PG-600A
Product Image
Product Range
Product Introduction
The PG-300A, PG-350A and PG-400A to PG-600A family is a servo-motor intermediate-guide integrated EPC system. When web deviation occurs during material travel, the sensor sends feedback to the controller and the system automatically pulls the web back to the correct position. The controller, driver and detector are integrated into one compact unit, helping save machine space and improve installation and commissioning efficiency.
Key Features
- Automatic web correction through sensor feedback to the controller
- Brushless DC servo motor drive
- Integrated controller, driver and detector structure
- Compact installation that helps save machine space
- Designed to improve customer installation and commissioning efficiency

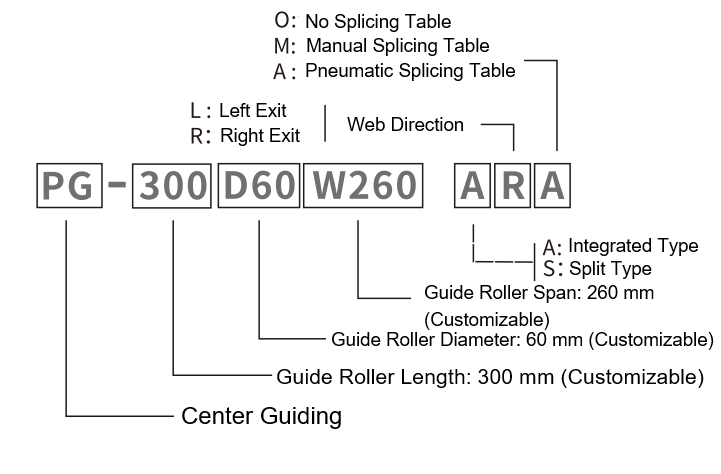

Model Code Reference
Specifications
Unit: mm
| Model | Roller Length A (mm) | Roller Diameter B (mm) | Span C (mm) | Base Length D (mm) | Guide Travel | Max Tension (N) |
|---|---|---|---|---|---|---|
| PG-200A | 200 | 50 | 230 | 255 | ±12° | 300 |
| PG-250A | 250 | 50 | 230 | 255 | ±12° | 300 |
| PG-300A | 300 | 60 | 260 | 300 | ±12° | 300 |
| PG-350A | 350 | 60 | 260 | 350 | ±12° | 300 |
| PG-400A | 400 | 60 | 320 | 410 | ±7° | 500 |
| PG-450A | 450 | 60 | 320 | 460 | ±7° | 500 |
| PG-500A | 500 | 60 | 320 | 510 | ±7° | 500 |
| PG-600A | 600 | 60 | 320 | 610 | ±7° | 500 |

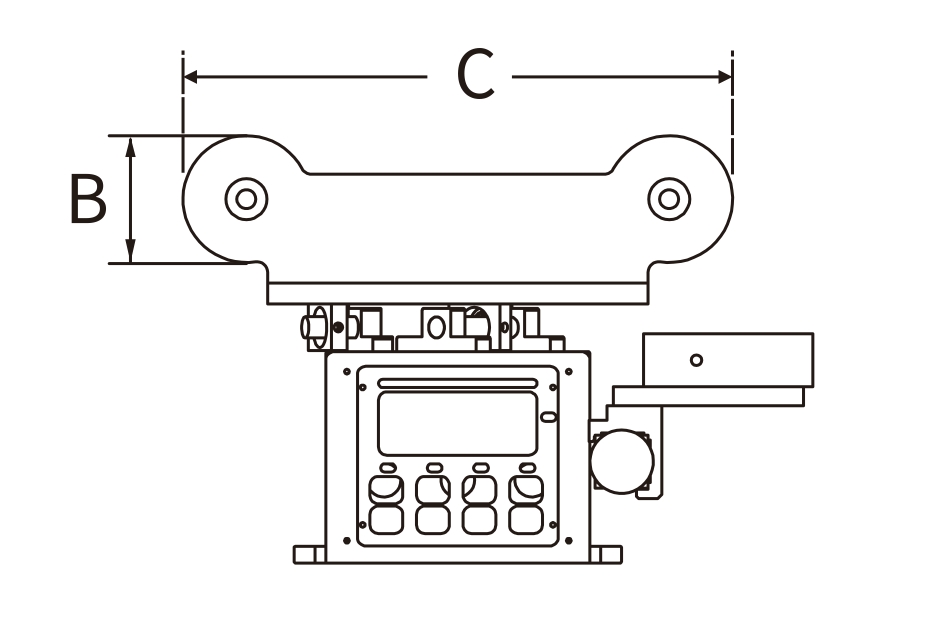

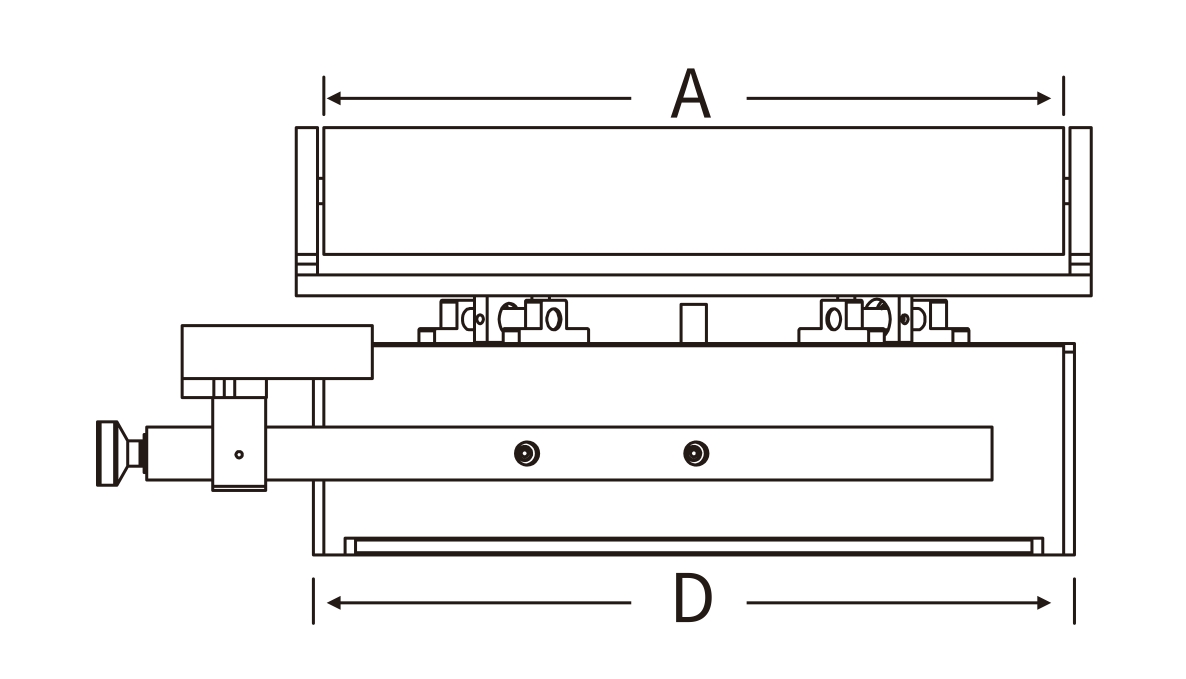

Dimensions Reference
Unit: mm
Product Fit
Typical applications
- Compact integrated EPC units for edge guiding and center guiding systems.
- Used on narrow and mid-width printing, label, film and flexible packaging lines.
- Combines controller, detector, guide rollers and servo correction structure in one assembly.
Compatible components
Request PG integrated EPC sizing support
Share your web width, roller length, roller diameter, line speed, web tension and installation space. KRD can recommend a compact EPC unit layout for your machine.
