LB60 Series Cantilever Tension Detector
Product Image
Product Introduction
LB series cantilever tension detector is designed for precise and repeatable tension measurement of paper, film, foil and other web materials. It is suitable for single-side cantilever roller machines such as form machines, label machines and tape machines. Its detection signal changes with web tension and is not affected by web position on the roller. The inner dual-cantilever protection structure helps prevent overload damage.
Key Features
- Easy installation
- Built-in idler roller
- Minimized deviation
- Four rated load grades
- Multiple roller width options
- Eliminates web guiding effect influence
- Customizable by roller width, diameter and surface requirements
Technical Parameters
Installation Drawing

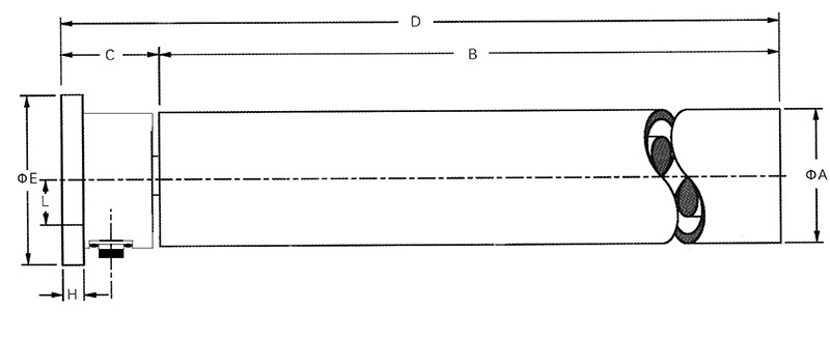

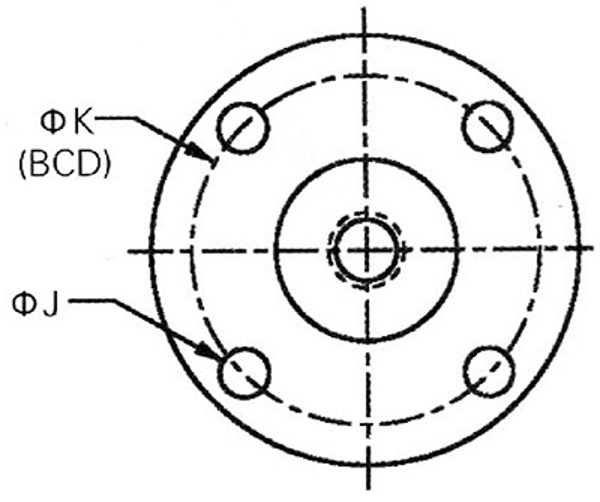

Flange installation drawings (Unit: mm).
A and B dimensions can be customized. Unit: mm. Model: LB-50L300-30F. PhiA: 60, B: 300, C: 71, D: 365, PhiE: 90, PhiK: 75, PhiJ: 9.
Product Fit
Typical applications
- Cantilever tension measurement for narrow and mid-width web machines.
- Used on label, form, tape, film, paper and foil converting equipment.
- Provides stable feedback for closed-loop tension control systems.
Compatible components
Request LB60 sensor selection support
Share your roller width, roller diameter, expected load, web material, web path and installation layout. KRD can help confirm the load range and sensor configuration.
