KTC828A
Product Image
Product Introduction
KTC828A is a high-precision, full-digital intelligent automatic tension controller. Working with LX-series tension detectors, it builds a closed-loop system and uses internal PID processing to regulate unwind/rewind tension automatically. It provides 0-24VDC output for magnetic powder clutch/brake and can also output 0-10V signal to drive inverter, servo motor, or other actuators for high-accuracy web tension control across printing, packaging, paper, cable, rubber-plastic, battery and textile lines.
Key Features
- 128x96 graphic LCD with Chinese/English UI
- Fully digital design without adjustable potentiometers, easy calibration and stable measurement
- Supports single/dual sensor input: differential 200mV (5V supply), strain-gauge 20mV (10V supply), and dancer potentiometer mode
- Optional RS485 communication for PLC/PC integration (Modbus)
- No-overshoot PID algorithm for start/stop tension stability
- Dual-shaft switching and acceleration/deceleration control
- Bumpless Auto/Manual switching
- Password protection for parameter safety
- Wide-range switching power input: 165-264VAC, long-term reliable operation
Technical Parameters

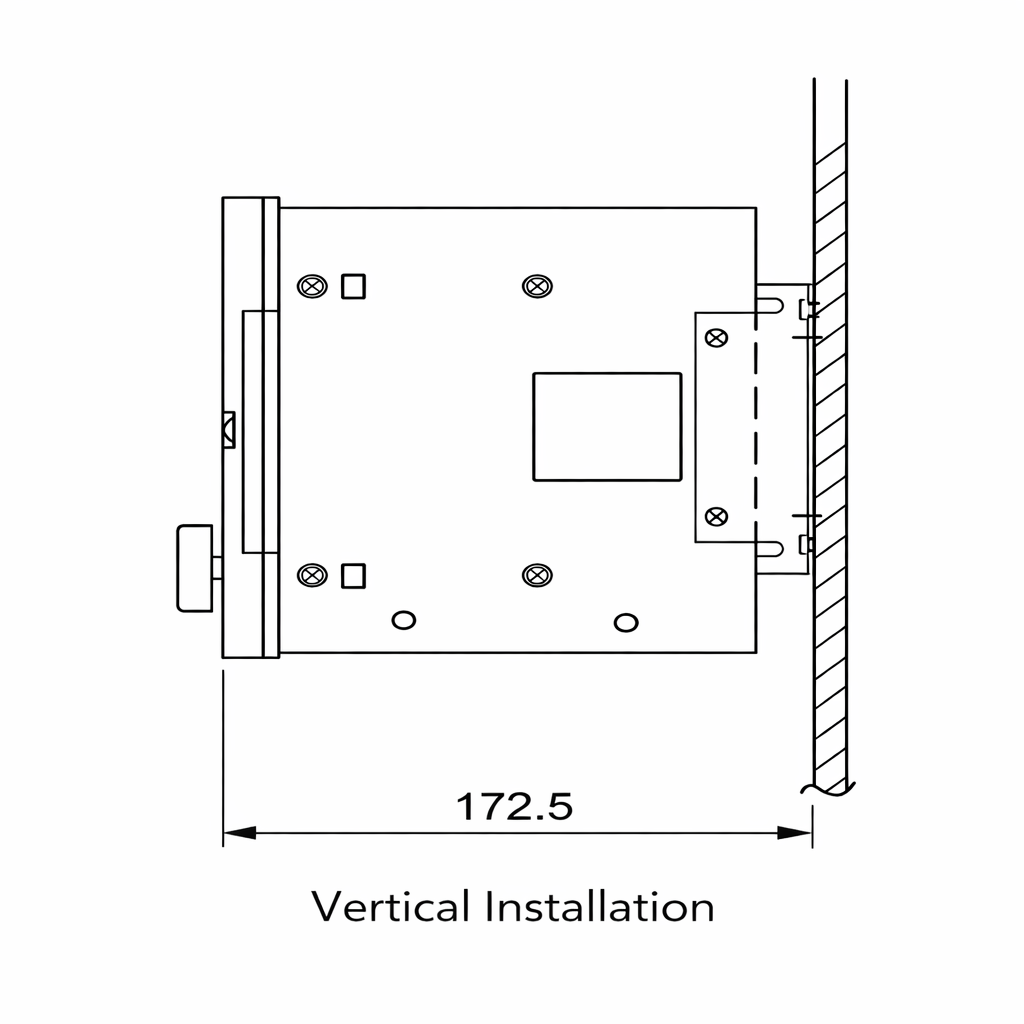

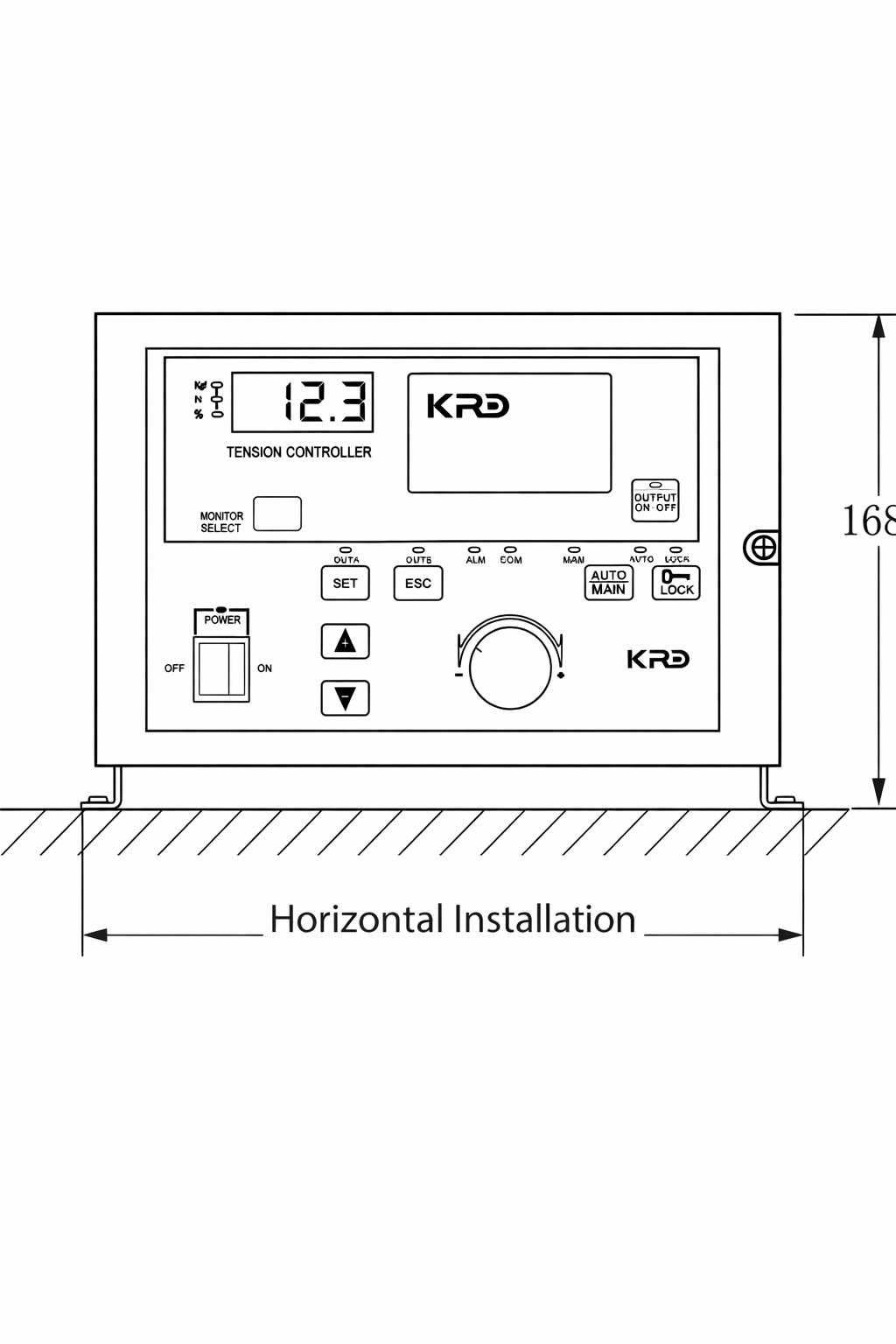

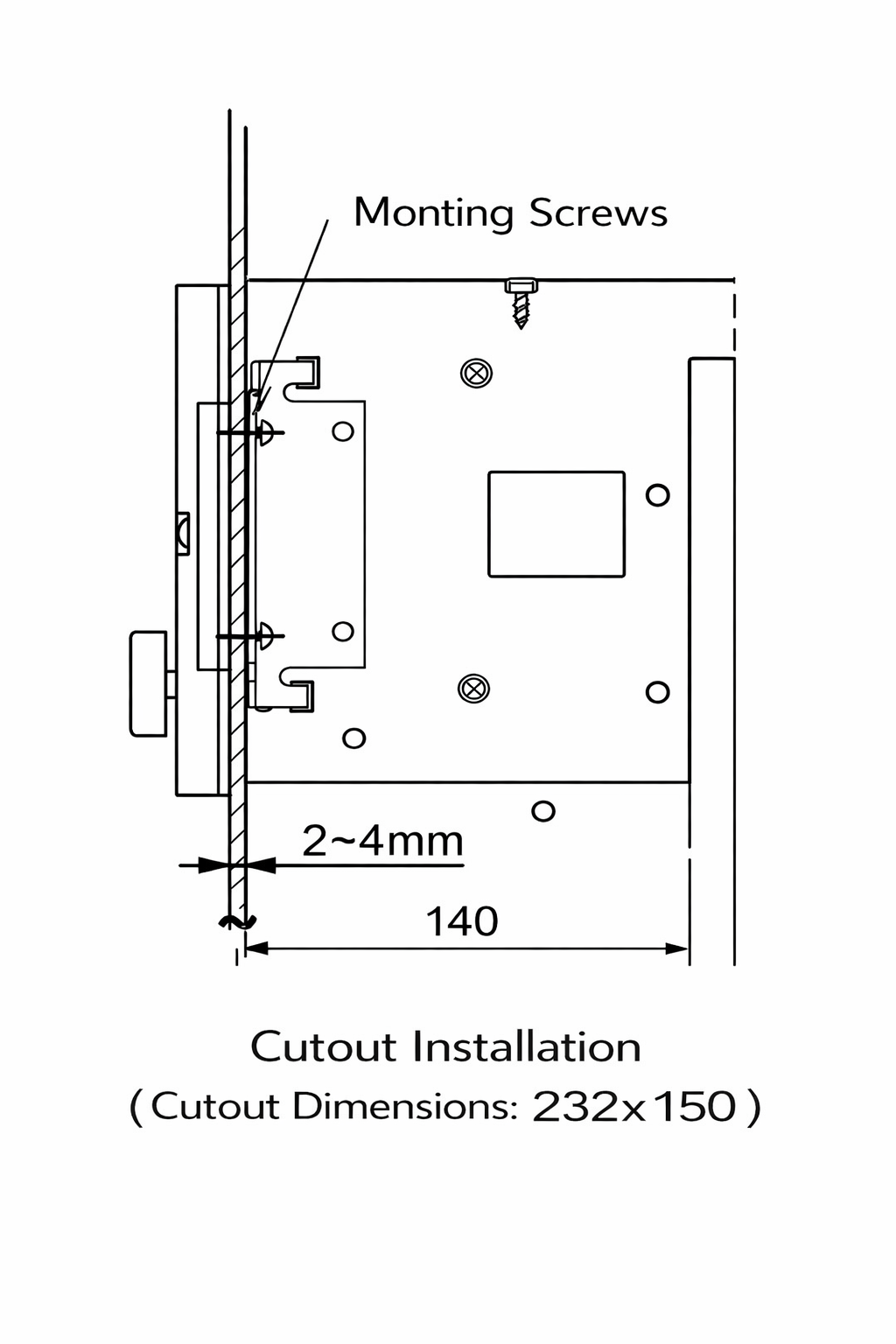

Installation Drawing
Note: All dimensions in this section are in mm.

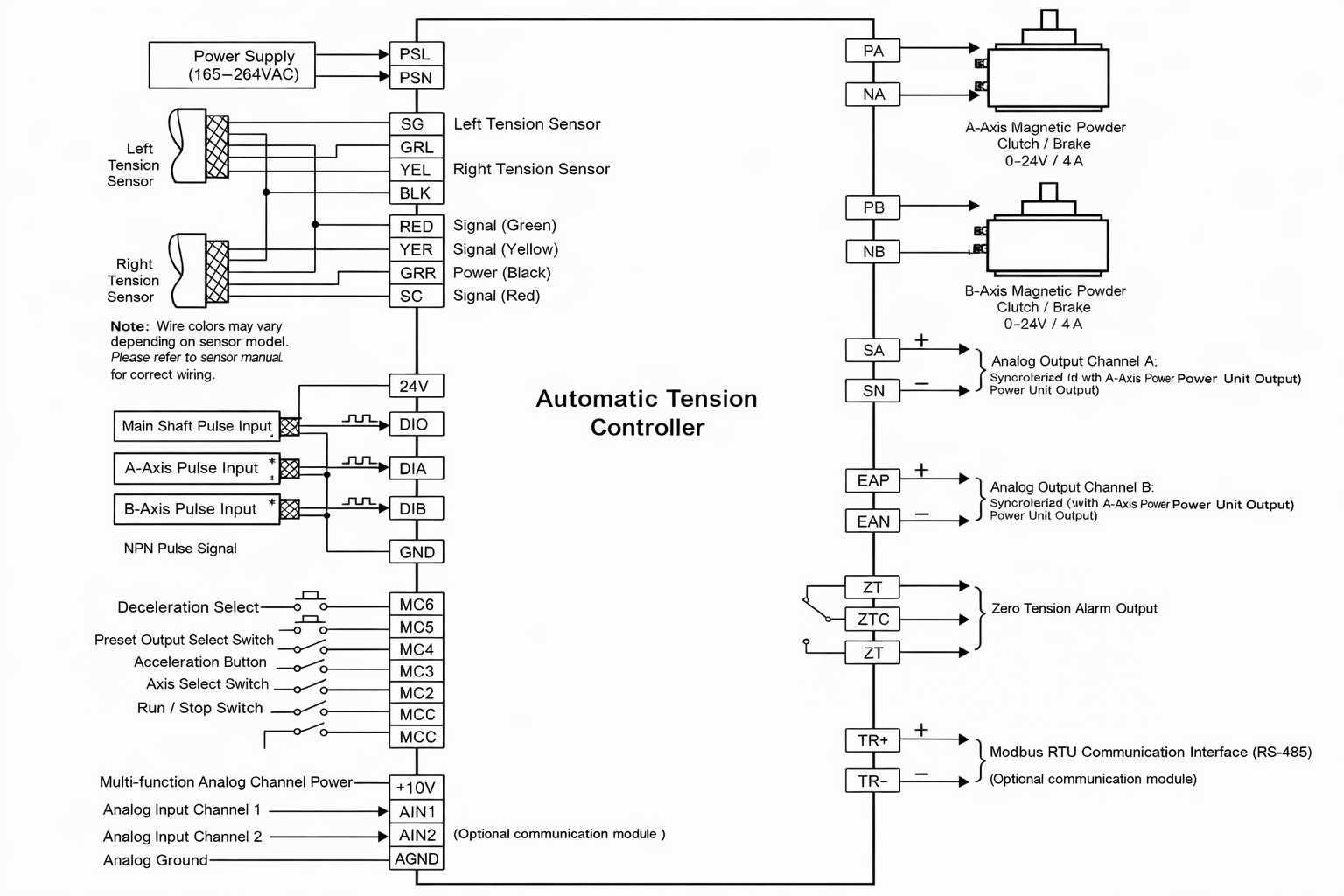

Wiring Diagram
Product Fit
Typical applications
- Closed-loop tension control for unwind, process and rewind sections.
- Used on printing, coating, laminating, slitting and roll-to-roll converting lines.
- Works with paper, film, foil, label stock and battery electrode webs.
Compatible components
Request KTC828A tension control support
Share your web width, tension range, roll diameter, line speed and brake, clutch or drive interface. KRD can recommend a controller, sensor and actuator combination for your machine.
