PM Series
Product Image
Product Introduction
The PM series guide roller web guide actuator performs precise web correction through a long infeed span threading arrangement. According to the product detail sheet, this innovative correction assembly can eliminate lateral web error, supports single-roller or double-roller structures, and when matched with a KRD servo motor linear driver, allows web tension up to 1 ton (about 9800 N) while delivering reliable correction performance in demanding environments.
Key Features
- Fast and accurate web guiding correction
- Low-friction ball bearings and precision guide transmission components
- High durability for long-term continuous operation with low maintenance rate
- Compatible with all KRD sensors and controllers
- Sensor selection can be matched to web material and system requirements
- Optional servo centering sensor module for faster start-up and threading control
- Multiple mounting brackets, supports, sensors and controllers available for easier installation
- Custom configurations available on request

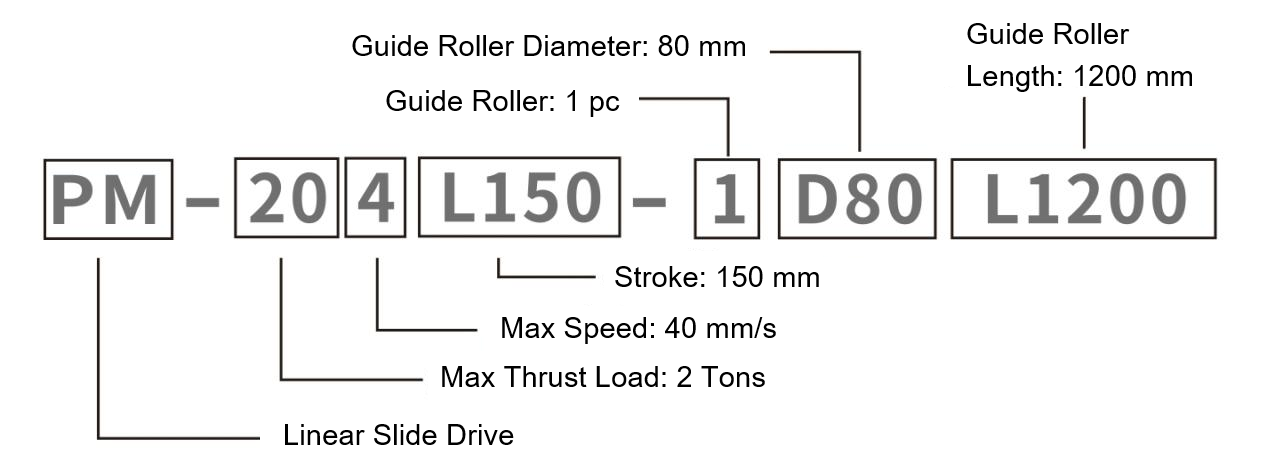

Model Code Reference

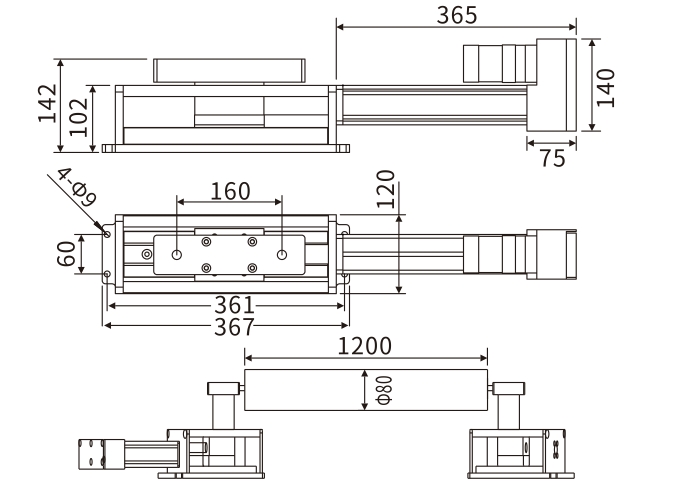

Dimensions Reference
Unit: mm
Product Fit
Typical applications
- Guide roller actuator for web guiding systems requiring stable lateral correction.
- Used on wider web, heavier load or longer infeed span converting equipment.
- Supports custom roller diameter, roller length, stroke and mounting configurations.
Compatible components
Request PM guide roller actuator support
Share your web width, web tension, roller diameter, roller length, stroke and mounting layout. KRD can help configure a guide roller actuator for your production line.
