EPC-A10

Product Image

Product Introduction

EPC-A10 is a servo web guide controller for edge, line and center position control on converting lines. It adopts a high-speed 32-bit CPU with a variable PI algorithm to achieve fast response, high guiding accuracy and stable operation across a wide range of materials.

Key Features

• Supports line guiding, edge guiding and center guiding modes
• Compatible with photoelectric, ultrasonic and CCD sensors
• Smart sensor parameter detection with minimal calibration effort
• Automatic stroke measurement without mechanical limit switches
• Variable PI algorithm with anti-overshoot tuning for high precision
• Ultra-fast response speed up to 0.5 ms
• 12-bit AD sampling for analog sensor signals, up to 700,000 samples per second
• RR digital filter and hysteresis filter for stronger anti-interference performance
• DC servo motor output for ball-screw positioning systems
• Power-off memory stores all system parameters and operating status
• Stores 10 parameter groups for quick material switching
• Simplified Chinese, Traditional Chinese and English menu interface
• One-key calibration for faster commissioning
• Supports Modbus communication for PLC and HMI integration
• Comprehensive anti-disturbance design reduces static, radiation and noise interference
• Low power consumption and energy-saving operation

Technical Parameters

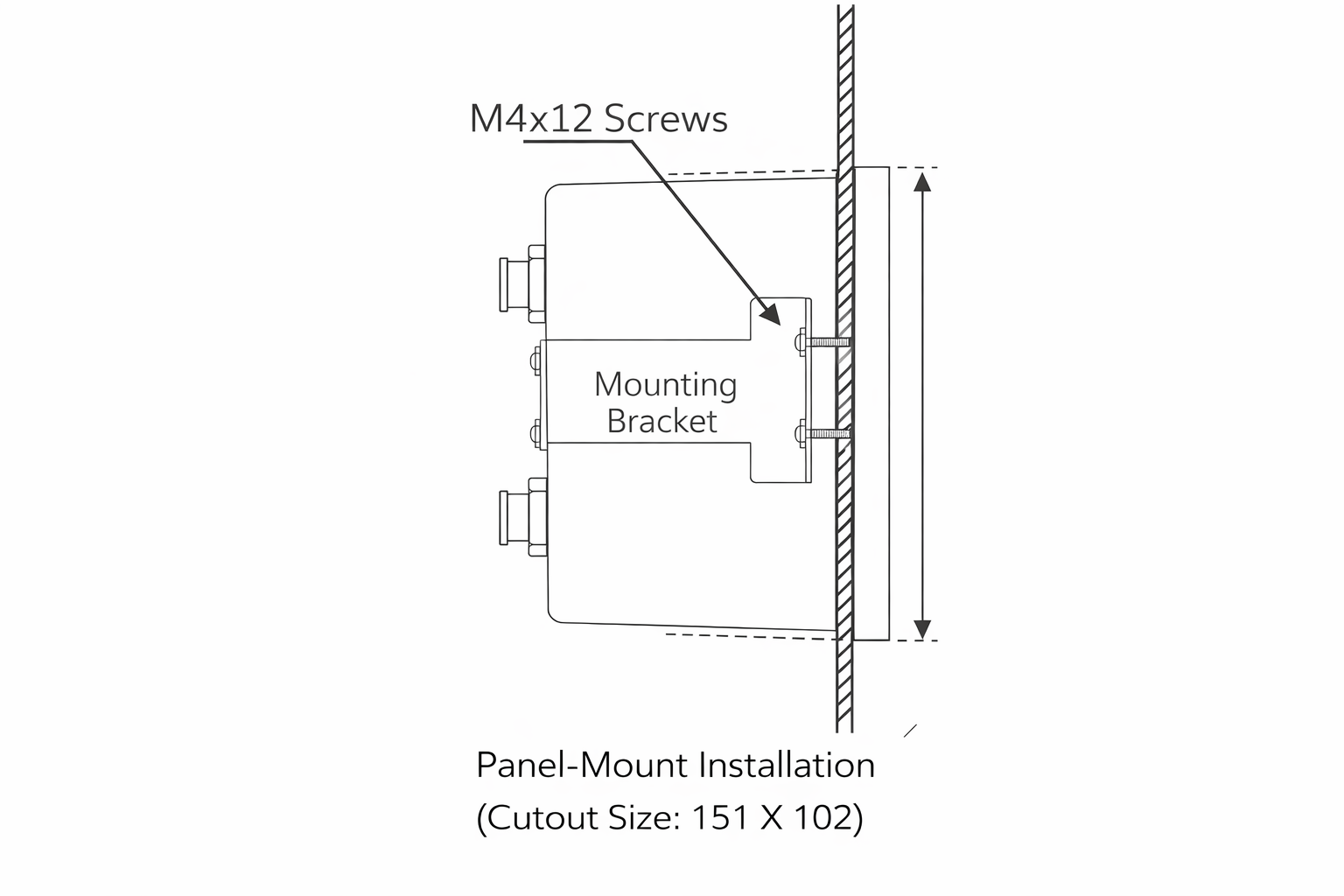

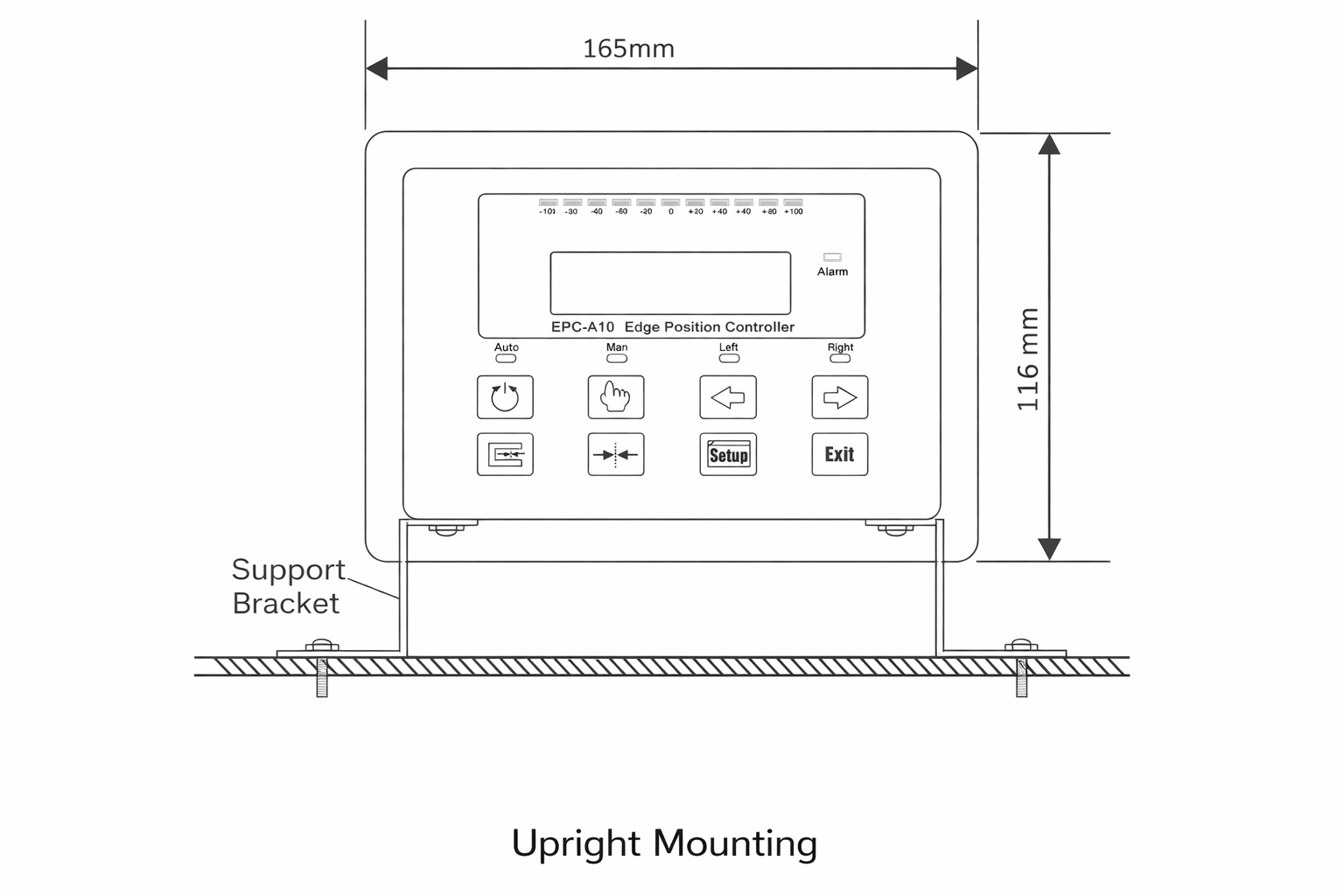

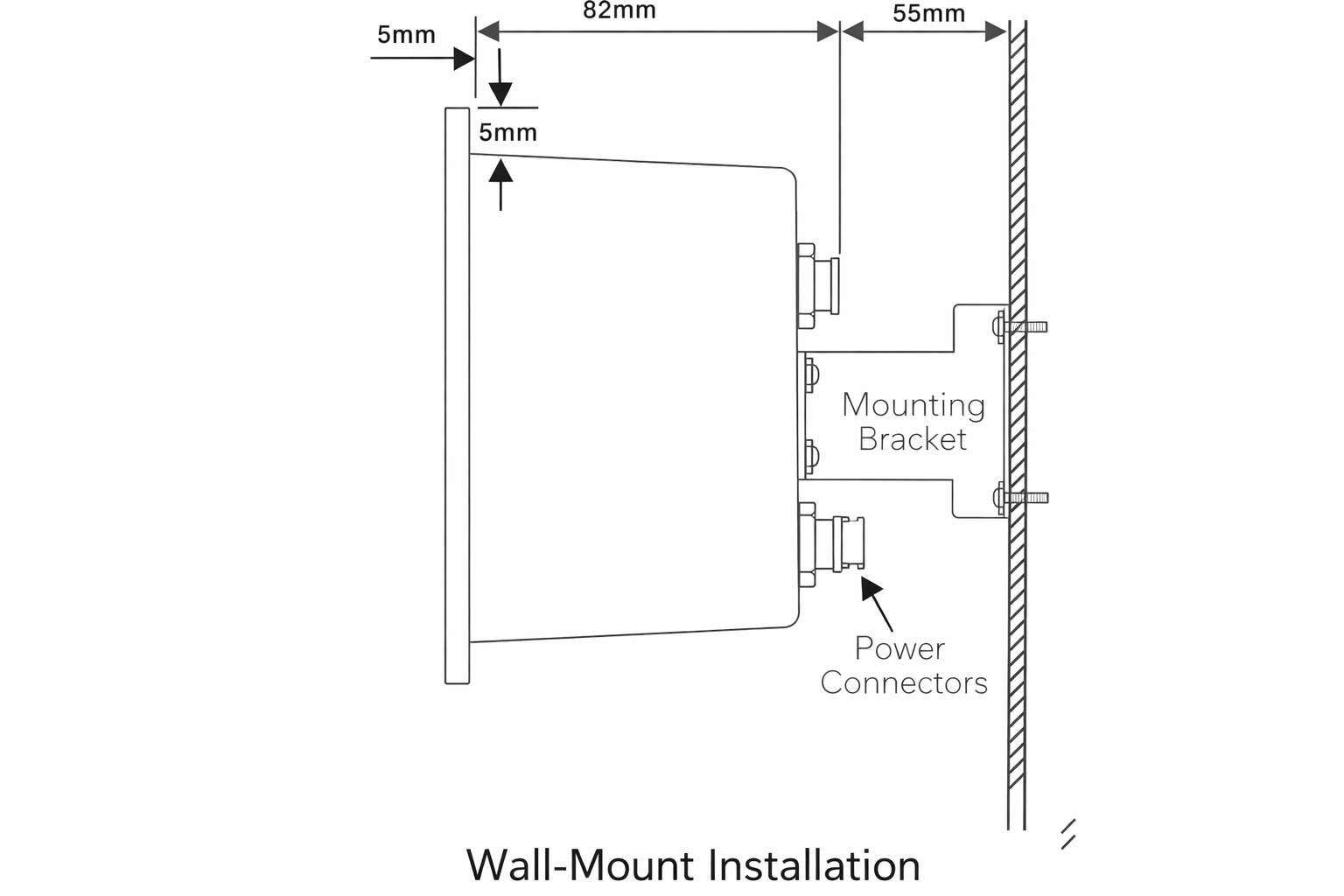

Installation Drawing

Note: All dimensions in this section are in mm.

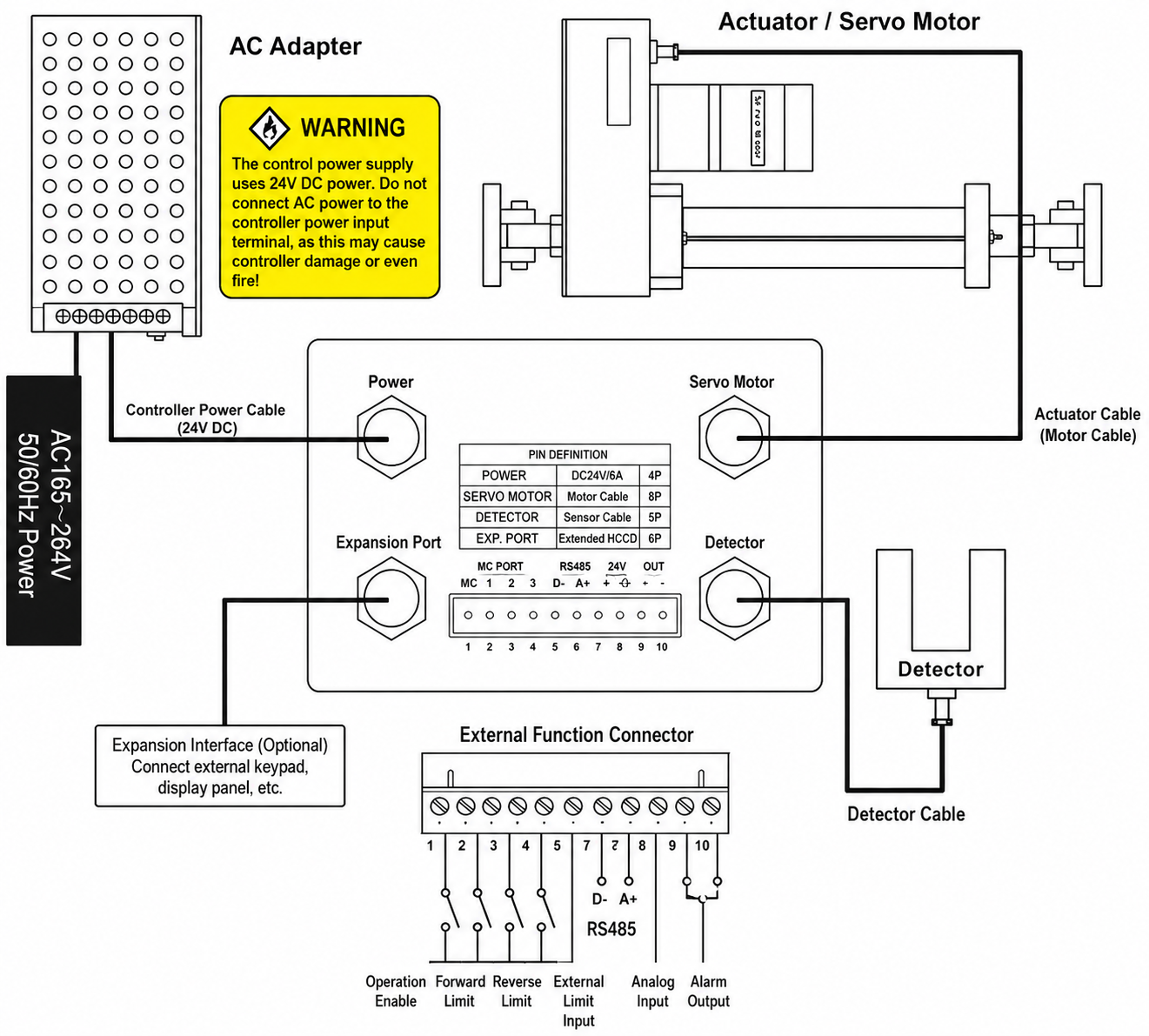

Wiring Diagram
